Tubería en Polipropileno PN 16 / RDE 7.4 – Aire Comprimido

Descripción

PN 16

Temperatura ambiente

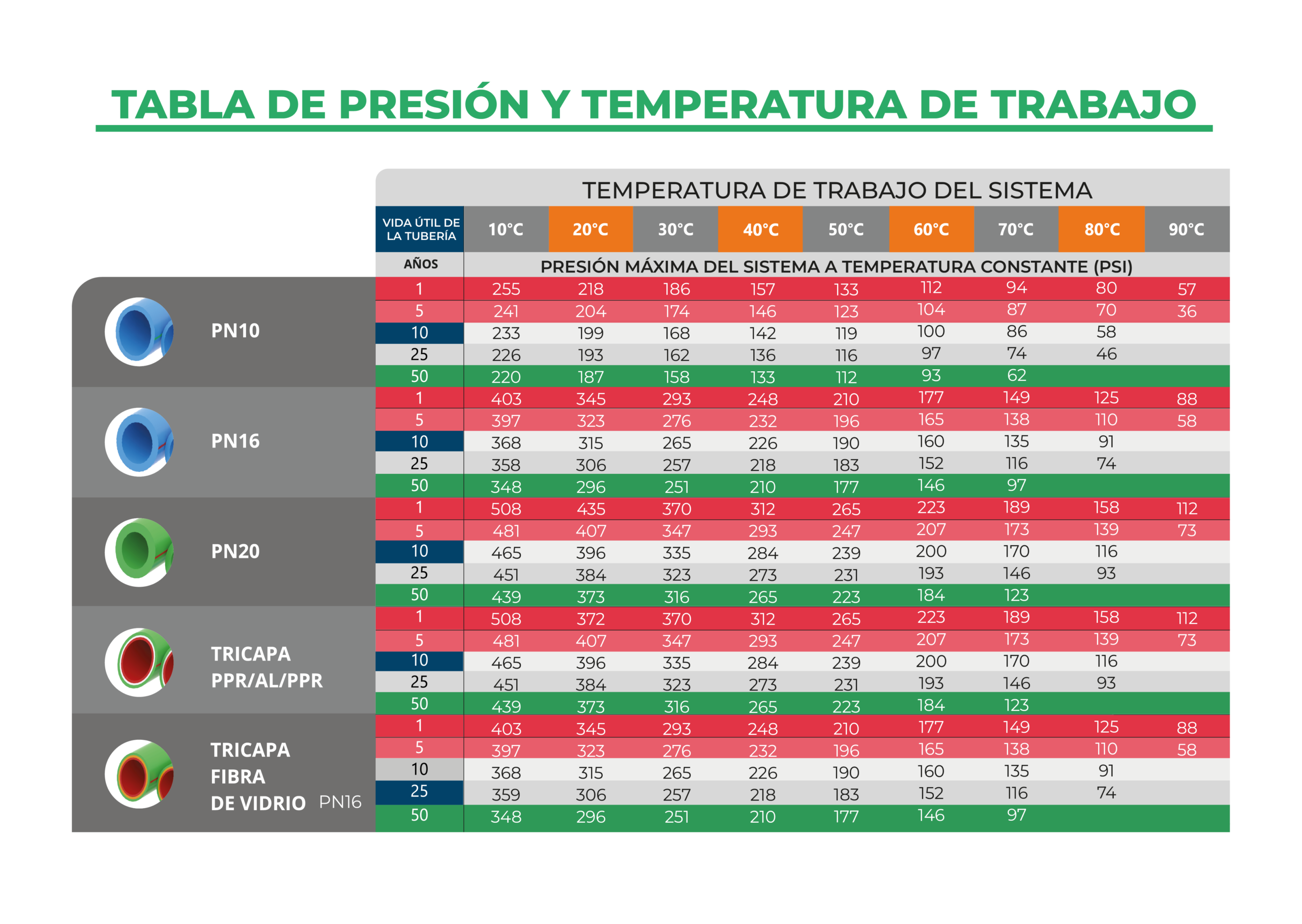

Ver tabla M.T Presión de trabajo permitida Referencia øA (mm) øA (in) øB (mm) S (mm) 20-101-16 20 1/2″ 14.4 2.8 20-102-16 25 3/4″ 18 3.5 20-103-16 32 1″ 23.2 4.4 20-104-16 40 1 1/4″ 29 5.5 20-105-16 50 1 1/2″ 36.2 6.9 20-106-16 63 2″ 45.8 8.6 20-107-16 75 2 1/2″ 55 10 20-108-16 90 3″ 65.4 12.3 20-109-16 110 4″ 79.8 15.1 20-120-16A 160 6″ 116.2 21.9

REF.	øA [mm]	øA [in]	øB[mm]	s [mm]	P(kg)
20-101-16	20	1/2″	14.4	2.8	0.151
20-102-16	25	3/4″	18	3.5	0.235
20-103-16	32	1″	23.2	4.4	0.378
20-104-16	40	1 1/4″	29	5.5	0.585
20-105-16	50	1 1/2″	36.2	6.9	0.912
20-106-16	63	2″	45.8	8.6	1.435
20-107-16	75	2 1/2″	55	10	2.052
20-108-16	90	3″	65.4	12.3	2.933
20-109-16	110	4″	79.8	15.1	4.363
20-120-16A	160	6″	116.2	21.9	9.165
